Spesifikasi :
Brand : BenQ
Projector Model : MS550
Display :
Projection System : DLP
Resolution : SVGA(800x 600)
Resolution Support : VGA (640 x 480) hingga WUXGA_RB (1920 x 1200)
Brightness (ANSI lumens) : 3600
Contrast Ratio (FOFO) : 20,000:1
Display Color : 1,07 Miliar Warna
Native Aspect Ratio : Tingkat 4:3 (5 rasio aspek dapat dipilih)
Light Source : Lampu
Light Source Wattage : 200W
Light Source life* :
Normal 5.000 jam
Eco 10.000 jam
SmartEco 10.000 jam
Hemat lampu 15.000 jam
Optical :
Throw Ratio 1.96~2.15
Zoom Ratio 1.1X
Keystone Adjustment Vertikal: 40 derajat
Projection Offset** 110%2.5%
Image Size 30"~300"
Horizontal Frequency 15K~102KHz
Vertical Scan Rate 23~120KHz
Audio Speaker 2W

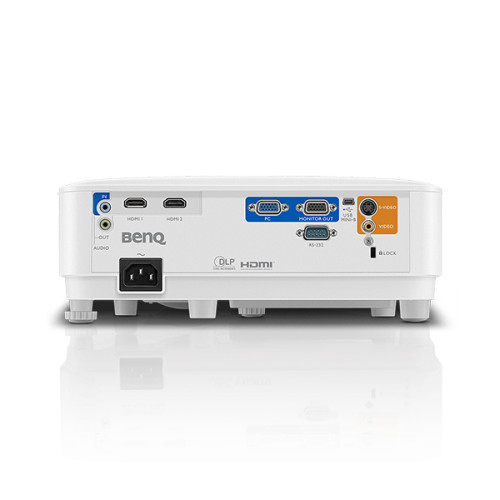

Interface :
PC (D-sub) x 1
Monitor out (D-sub 15pin) x 1
S-Video in (Mini DIN 4pin) x 1
Composite Video in (RCA) x 1
HDMI x 2
USB Type Mini B x 1
Audio in (3.5mm Mini Jack) x 1
Audio out (3.5mm Mini Jack) x 1
RS232 (DB-9pin) x 1
IR Receiver x 2
Security Bar x 1
Compatibility :
HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility : NTSC, PAL, SECAM
Environment :
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption 270W
Standby Power Consumption <0,5W
Acoustic Noise (Typ./Eco.) 33/29 dBA (Mode Normal/Eco)
Operating Temperature 0~40
Dimension and Weight :
Dimensions (W x H x D)(mm) 296 x 120 x 221
Net Weight (Kg/ lbs ) 2.3 kg
